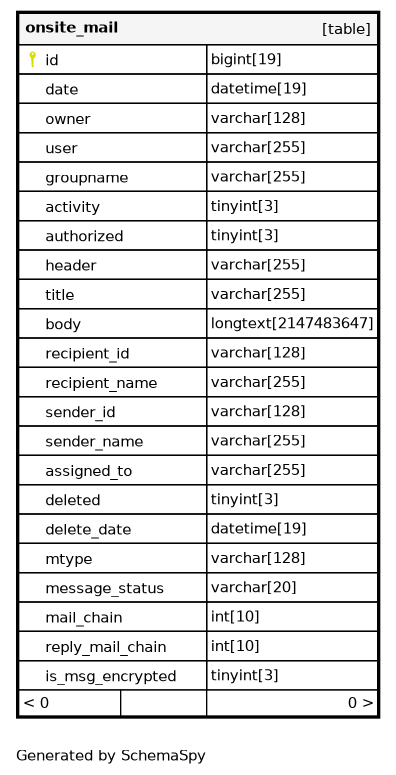

Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments |
|---|---|---|---|---|---|---|---|---|
| id | BIGINT | 19 | √ | null |
|
|
Surrogate id of the record used as the primary incrementing key |
|
| date | DATETIME | 19 | √ | NULL |
|
|
Date and time of the message |
|
| owner | VARCHAR | 128 | √ | NULL |
|
|
Owner of the message. If this is a message intended for a patient this will be the patient_data.pid if it is for a user this will be the users.id |
|
| user | VARCHAR | 255 | √ | NULL |
|
|
User associated with the message |
|
| groupname | VARCHAR | 255 | √ | NULL |
|
|
Name of the group associated with the message |
|
| activity | TINYINT | 3 | √ | NULL |
|
|
Activity associated with the message. 0=deleted, 1=message is active |
|
| TINYINT | 3 | √ | NULL |
|
|
Authorization status of the message |
||
| header | VARCHAR | 255 | √ | NULL |
|
|
Header of the message |
|
| title | VARCHAR | 255 | √ | NULL |
|
|
Title of the message |
|
| body | LONGTEXT | 2147483647 | √ | NULL |
|
|
Body of the message |
|
| recipient_id | VARCHAR | 128 | √ | NULL |
|
|
ID of the message recipient. If a patient is sending this message to a user this will be the users.id, otherwise it is i the patient_data.pid |
|
| recipient_name | VARCHAR | 255 | √ | NULL |
|
|
Name of the message recipient. This will be the first and last name of the recipient. |
|
| sender_id | VARCHAR | 128 | √ | NULL |
|
|
ID of the message sender. If a patient is sending this message to a user this will be the patient_data.pid, otherwise it is the users.id |
|
| sender_name | VARCHAR | 255 | √ | NULL |
|
|
Name of the message sender |
|
| assigned_to | VARCHAR | 255 | √ | NULL |
|
|
Assignment information for the message |
|
| deleted | TINYINT | 3 | √ | 0 |
|
|
Flag indicating whether the mail is deleted |
|
| delete_date | DATETIME | 19 | √ | NULL |
|
|
Date and time when the message was deleted |
|
| mtype | VARCHAR | 128 | √ | NULL |
|
|
Message type (‘Notification’, ‘Message’) |
|
| message_status | VARCHAR | 20 | 'New' |
|
|
Status of the message (‘Done’,‘New’) |
||
| mail_chain | INT | 10 | √ | NULL |
|
|
Mail chain ID |
|
| reply_mail_chain | INT | 10 | √ | NULL |
|
|
Reply mail chain ID |
|
| is_msg_encrypted | TINYINT | 3 | √ | 0 |
|
|
Whether the message is encrypted (0-Not encrypted, 1-Encrypted) |
Indexes
| Constraint Name | Type | Sort | Column(s) |
|---|---|---|---|
| PRIMARY | Primary key | Asc | id |
| pid | Performance | Asc | owner |
