lists


If there is patient data for this table the file for this export will be found in the extracted zip folder location under the filename of lists.csv

If there are non-patient data column elements that are not part of the designated record set they will be marked in the Comment's column for that data element

Description

Patient issues list including allergies, medical problems, medications, medical devices, surgeries, and dental issues. Type of issue is in the type column.

Columns

Column Type Size Nulls Auto Default Children Parents Comments
id BIGINT 19 √ null
documents.list_id Defined in XML R
forms.issue_id Defined in XML R
lists_medication.list_id Defined in XML R
issue_encounter.list_id Defined in XML R

Primary identifier of the record
date DATETIME 19 √ NULL

Date the issue was created
type VARCHAR 255 √ NULL
issue_types.type Defined in XML R

The type of the issue (allergy, medication, etc) where the issue_types.category=‘default’
title VARCHAR 255 √ NULL

The human readable description of the issue
begdate DATETIME 19 √ NULL

The beginning date for when this issue occurred as reported by the patient or the provider
enddate DATETIME 19 √ NULL

The end date for when this issue occurred as reported by the patient or the provider
returndate DATE 10 √ NULL

UNUSED - will be removed in the future
occurrence INT 10 √ 0
list_options.option_id Defined in XML R

Comes from the list_options.list_id=‘occurrence’ and is the frequency that this issue occurs for the patient
classification INT 10 √ 0

UNUSED - will be removed in the future
referredby VARCHAR 255 √ NULL

The human readable name of Referring physician and practice
extrainfo VARCHAR 255 √ NULL

UNUSED - will be removed in the future
diagnosis VARCHAR 255 √ NULL

The diagnosis of the issue. Format is a text string in the format of ‘system:code;system:code2;system:coden’
activity TINYINT 3 √ NULL

Value of 0 means the record has been deleted, 1 means the record is active in the system
comments LONGTEXT 2147483647 √ NULL

Human readable additional notes/comments of the issue
pid BIGINT 19 √ NULL
patient_data.pid Defined in XML R

The internal patient identifier
user VARCHAR 255 √ NULL
users.username Defined in XML R

The user that created or last updated this issue
groupname VARCHAR 255 √ NULL
groups.name Defined in XML R

The user group that created or last updated this issue
outcome INT 10 0
list_options.option_id Defined in XML R

Comes from the list_options.list_id=‘outcome’ and represents the outcome of the issue
destination VARCHAR 255 √ NULL

Human readable name of GP, Secondary care specialist, etc.
reinjury_id BIGINT 19 0

UNUSED - will be removed in the future
injury_part VARCHAR 31 ''

UNUSED - will be removed in the future
injury_type VARCHAR 31 ''

UNUSED - will be removed in the future
injury_grade VARCHAR 31 ''

UNUSED - will be removed in the future
reaction VARCHAR 255 ''
list_options.option_id Defined in XML R

Comes from the list_options.list_id=‘reaction’ and represents the reaction of the patient to the allergy
external_allergyid INT 10 √ NULL

An identifier for an allergy from an external eRx system
erx_source enum('0', '1') 1 '0'

O if the allergy issue originated in OpenEMR, 1 if the allergy issue originated in an external system
erx_uploaded enum('0', '1') 1 '0'

O if allergy is still waiting to be uploaded to an external system (such as eRX), 1 if the allergy issue has been successfully received by the eRX system
modifydate TIMESTAMP 19 current_timestamp()

The date the issue record was last modified
severity_al VARCHAR 50 √ NULL
list_options.option_id Defined in XML R

Comes from the list_options.list_id=‘severity_ccda’ and represents the severity of the allergic reaction of the patient to the allergy
external_id VARCHAR 20 √ NULL

UNUSED - will be removed in the future
subtype VARCHAR 31 ''
list_options.option_id Defined in XML R

The sub type of the issue where the list_options.list_id=‘issue_subtypes’
list_option_id VARCHAR 100 √ NULL
list_options.option_id Defined in XML R

Comes from the list_options.list_id=CONCAT(lists.type,‘_issue_list’) and represents the prefilled list option id that was chosen as a template to create this issue
uuid BINARY 16 √ NULL

UUID of the record
verification VARCHAR 36 ''
list_options.option_id Defined in XML R

Comes from the list_options.list_id=‘allergyintolerance-verification’ and represents the confirmation status of the allergy
udi VARCHAR 255 √ NULL

The unique device identifier. Populated if the issue is of type medical_device
udi_data MEDIUMTEXT 16777215 √ NULL

The JSON serialized medical device as returned from the https://accessgudid.nlm.nih.gov/api/v2/devices/lookup.json api. Populated if the issue is of type medical_device

Indexes

Constraint Name Type Sort Column(s)
PRIMARY Primary key Asc id
pid Performance Asc pid
type Performance Asc type
uuid Must be unique Asc uuid

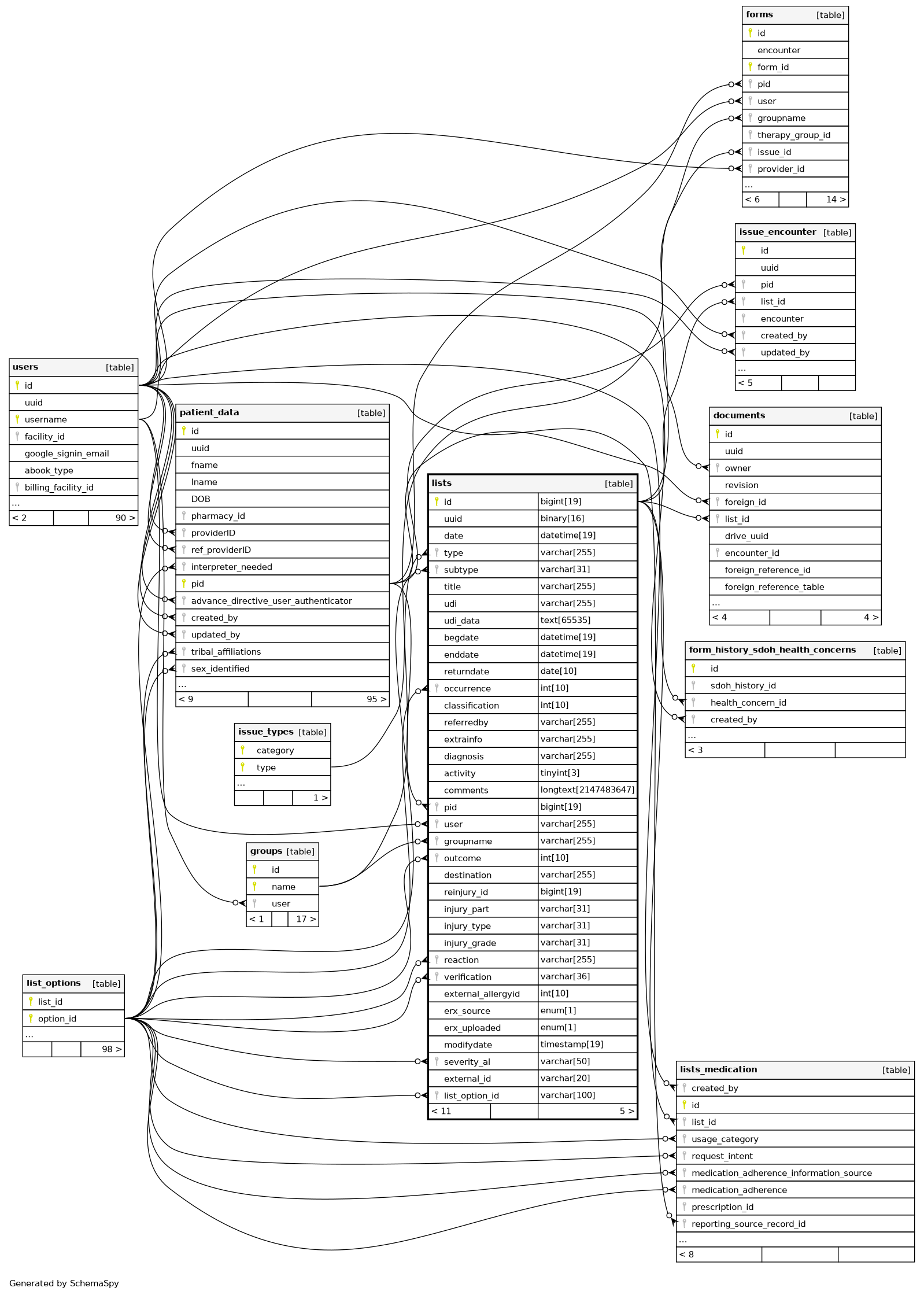

Relationships

Close relationships within degrees of separation
