immunizations


If there is patient data for this table the file for this export will be found in the extracted zip folder location under the filename of immunizations.csv

If there are non-patient data column elements that are not part of the designated record set they will be marked in the Comment's column for that data element

Description

Patient Immunizations

Columns

Column Type Size Nulls Auto Default Children Parents Comments
id BIGINT 19 √ null
immunization_observation.imo_im_id Defined in XML R
patient_id BIGINT 19 √ NULL
patient_data.pid Defined in XML R

The internal patient identifier
administered_date DATETIME 19 √ NULL
immunization_id INT 10 √ NULL
list_options.option_id Defined in XML R

Comes from the list_options.list_id=‘immunizations’ and represents common list of immunizations the EMR works with
cvx_code VARCHAR 64 √ NULL
manufacturer VARCHAR 100 √ NULL
list_options.option_id Defined in XML R

Comes from the list_options.list_id=‘Immunization_Manufacturer’ and represents a list of immunization manufacturers
lot_number VARCHAR 50 √ NULL
administered_by_id BIGINT 19 √ NULL
users.id Defined in XML R

The person that administered the immunization
administered_by VARCHAR 255 √ NULL

Alternative to administered_by_id
education_date DATE 10 √ NULL
vis_date DATE 10 √ NULL

Date of VIS Statement
note MEDIUMTEXT 16777215 √ NULL
create_date DATETIME 19 √ NULL
update_date TIMESTAMP 19 current_timestamp()
created_by BIGINT 19 √ NULL
users.id Defined in XML R

The user that created this record
updated_by BIGINT 19 √ NULL
users.id Defined in XML R

The user that last updated this record
amount_administered FLOAT 12 √ NULL
amount_administered_unit VARCHAR 50 √ NULL
list_options.option_id Defined in XML R

Comes from the list_options.list_id=‘drug_units’ and represents the units of drug administered
expiration_date DATE 10 √ NULL
route VARCHAR 100 √ NULL
list_options.option_id Defined in XML R

Comes from the list_options.list_id=‘drug_route’ and represents a list of immunization manufacturers
administration_site VARCHAR 100 √ NULL
list_options.option_id Defined in XML R

Comes from the list_options.list_id=‘immunization_administered_site’ and represents the body sites where the immunization can be administered
added_erroneously BOOLEAN 3 0
external_id VARCHAR 20 √ NULL
completion_status VARCHAR 50 √ NULL
list_options.option_id Defined in XML R

Comes from the list_options.list_id=‘Immunization_Completion_Status’ and represents the status of the immunization
information_source VARCHAR 31 √ NULL
list_options.option_id Defined in XML R

Comes from the list_options.list_id=‘immunization_informationsource’ and represents where the source of information the immmunization is coming from originates
refusal_reason VARCHAR 31 √ NULL
list_options.option_id Defined in XML R

Comes from the list_options.list_id=‘immunization_refusal_reason’ and represents the reasons the individual refused immunization
ordering_provider INT 10 √ NULL
users.id Defined in XML R

The provider that issued the order to administer this immunization
uuid BINARY 16 √ NULL
reason_code VARCHAR 31 √ NULL

Medical code explaining reason of the vital observation value in form codesystem:codetype;…;
reason_description MEDIUMTEXT 16777215 √ NULL

Human readable text description of the reason_code column

Indexes

Constraint Name Type Sort Column(s)
PRIMARY Primary key Asc id
patient_id Performance Asc patient_id
uuid Must be unique Asc uuid

Relationships

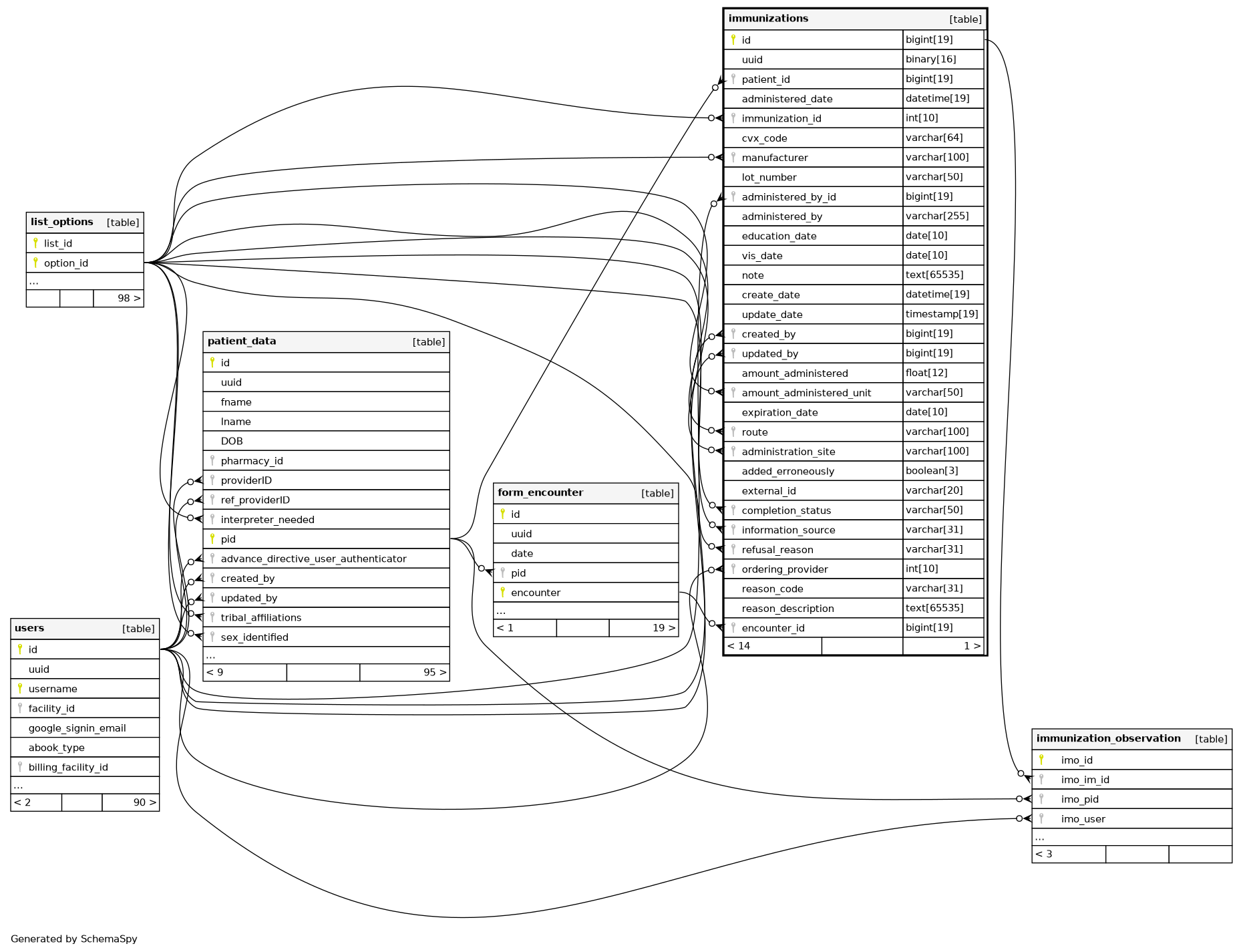

Close relationships within degrees of separation
