form_painmap


If there is patient data for this table the file for this export will be found in the extracted zip folder location under the filename of form_painmap.csv

If there are non-patient data column elements that are not part of the designated record set they will be marked in the Comment's column for that data element

Description

Patient pain map form. Pain map image for mapping this form is stored in the EHI zip export at images/painmap.png

Columns

Column Type Size Nulls Auto Default Children Parents Comments
data Unknown 0 null

Data of the patient pain map to overlay ontop of the pain image. Each mapped data element is in the following format x1CoordinatePixels^y1CoordinatePixels^pain1Description}…}.
groupname Unknown 0 null
groups.name Defined in XML R

The groupname that created this record.
id Unknown 0 null
forms.form_id Defined in XML R

The primary key which is the same as the forms.form_id column
pid Unknown 0 null
patient_data.pid Defined in XML R

The internal patient identifier
user Unknown 0 null
users.id Defined in XML R

The user that created this record.

Relationships

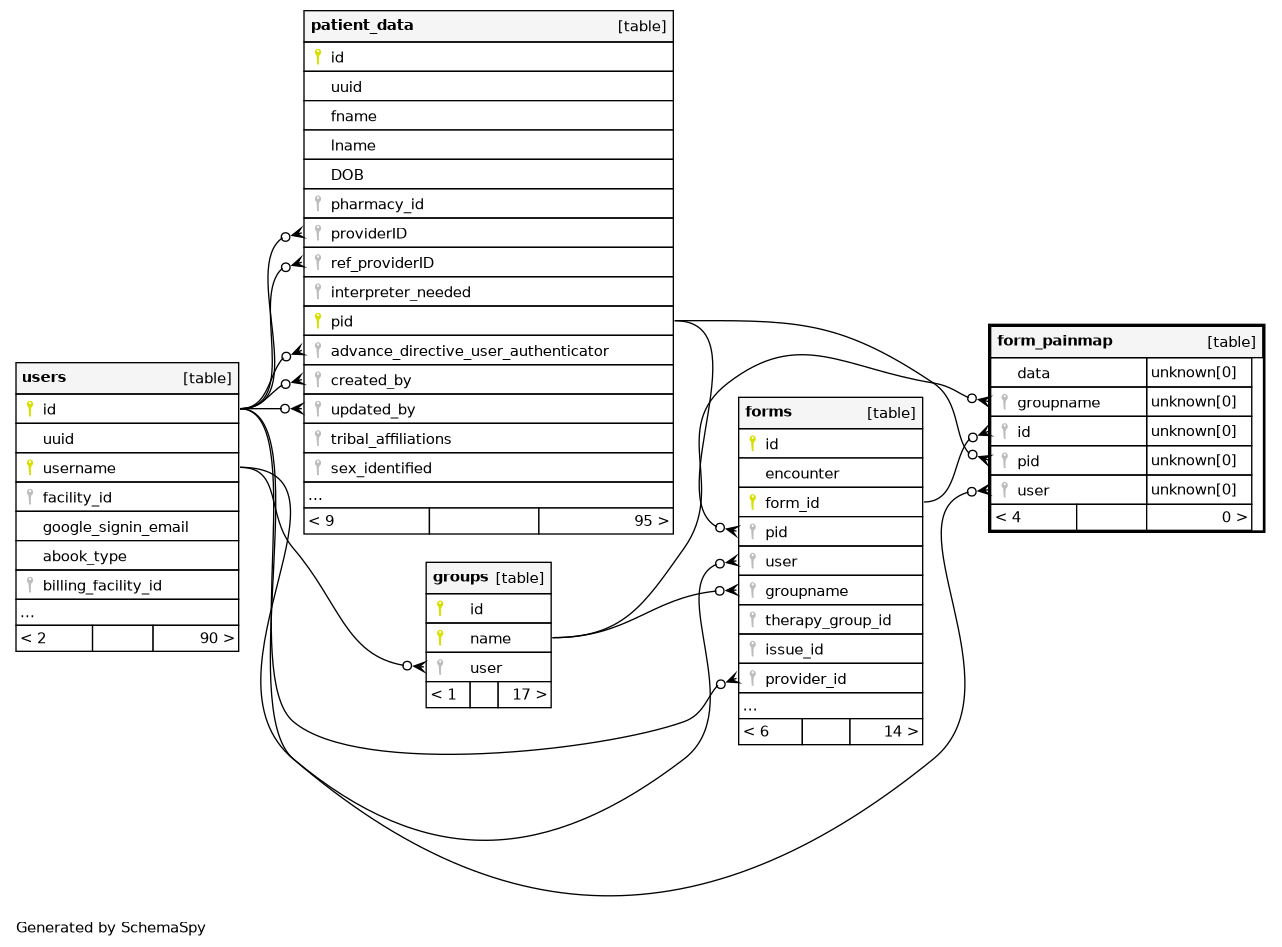

Close relationships within degrees of separation
